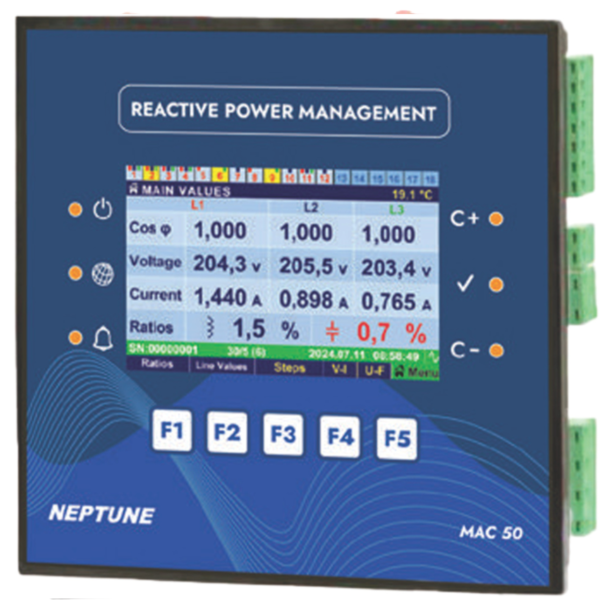

MAC 50 Highly Advanced Power Factor Controller
In today’s Electrical network, electronic (DC) equipment’s or controlling devices are widely used avail to energy efficiency, precise control, automation process, low carbon emission and green building project concept. Electronic equipment’s devices are very sensitive towards any surge and spike.
MAC 50 Highly Advanced Power Factor Controller displays phase wise , average, total, minimum and maximum values, V, I, F, Cos phi, Kw, KVA, KVAR (Inductive/ Capacitive), Kwh, KVAh, KVArh, Inductive/ capacitive, Advance, four quadrant, microprocessor based controllers offers 3 line LCD display with 0.999 PF,3-phase current sensing, lag-lead indication, automatic update and correction, bi-directional current detection and compensation, dual source setting, Rs-485 port, inductive/capacitive ratio and many more.
It offers high resolution, colored, fast and smooth 3.5” TFT display with smart menu and user-friendly interface to operate, Hybrid compensation with single phase step selection, Automatic voltage & current phase matching, secondary 1A or 5A option, display up to 63rd harmonic in voltage & Current, preventive maintenance with daily record and much more.
Description
| Technical Data | Description |
| Operating Voltage | 230V AC / 415V AC |
| Operating Voltage range | 0.8 to 1.1 times of Un |
| Measurement Accuracy | Class 0.5 |
| Protection Class | IP-40 |
| Measurement Current range | 30mA – 6A |
| Relay contact output | 3A, 240V AC |
| Operating frequency | 50 – 60Hz |
| Power Consumption | 0.7 – 3.7 VA |
| Generator Input | 110 – 250V AC |
| Setting Limit | 1% – 100% Capacitive and Inductive both |
| CT Ratio (MAC 50 ) | Primary (5A to 10000A) & Secondary (1A or 5A) |
| Ambient Temp | -10 / + 60 Degree Celsius |
