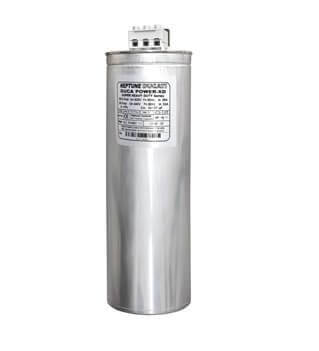

Duca Power XD Capacitors (Super HD)
Features
- Withstand Harmonic overloads
- Max. overload 4x In
- Life expectancy ≥1,70,000 hours
- Low losses ≤0.2 W/ KVAR
- Capacitance tolerance -5 +10%
- Temperature range -25 °C to 70°C
- High capacitor performance in terms of heat dissipation
- Long life and excellent ground insulation
- Design and 525Volt IP20 protection
- Reference Standard IEC 831-1/2
10 KVAr, 12.5 KVAr,15, 25 KVAr & above
Description
Duca Power XD Capacitors series are used for static power factor correction with an with/without Detuned Reactors For a wide range of motors and transformers. This series share the same internal configuration, with three capacitor elements wired internally in a delta connection. The overpressure protection system is specifically dimensioned so as to constantly ensure maximum safety in terms of ground protection and protection against the risk of arcing, even in conditions where there is a high energy density.
In these series dielectric medium may be inert gas or resin-impregnation. The three elements are housed in a Aluminum container which, together with the impregnating agents, assures dual insulation between the wound cores and metal enclosure. To guarantee perfect filling during the resin impregnation process, the process itself is carried out prior to the elements being placed in the enclosure; in this way the distribution and uniformity of the impregnation can be subjected to a complete visual and dimensional inspection.
Technical Specifications
| Technical Data | Description |
| Standard | IEC 60831–1/2 (2014) |
| Rated Voltage | 415-690V (Higher Ratings on Demand) |
| Rated Frequency | 50/60 Hz |
| Max dv/dt | 100V/microSec |
| Over volage withstand | Un 15% ,30 mins in every 24 Hrs,Un 30 % 1min. In every 24 Hrs |
| Duty | Continuous |
| Over Current | 4 * In |
| Test voltage terminals | 2.15*Un AC 10s |
| Test voltage terminalcase | 3 KV AC 10s |
| Inrush Current | 200 *In |
| Losses | <0.2 W/Kvar, |
| Casing | Cylindrical Aluminum CAN |
| Internal Connection | Delta |
| Enclosure Protection | IP20 |
| Life Expectancy | 170000 temp level D |
| Ambient Temperature | -25/70 |
| Cooling | Natural cooling casing temperature Max 60 C Permitted on top of the Case |
| Dielectric System | MPP Type, Self -healing Properly |
| Impregnation | Inert Gas Or NPCB, Biodegradable natural Oil |
| Safety Features | Over Pressure Sensitive 3 Ph Disconnector |
| Altitute | Max 2000 mtrs |
| Relative Humidity | Max 95% |
| Mounting Position | Random |
| Mounting and Earthing | Threaded Stud at bottom of the Case with Nut & Spring Washer |
| Discharge resistors | 1 Min,50 V. |
