Power Factor Improvement for Unbalanced Load

Higher KVAR Ratings are also available on demand.

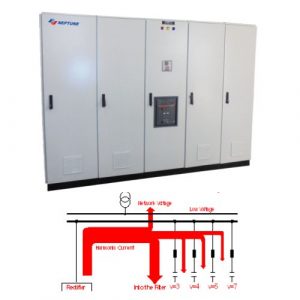

Power Factor APFC (With capacitor / With capacitor & Line Reactor)

Description

  • Available from 25 KVAR TO 325 KVAR in Series-I and Series-II
  • Heavy Duty 3 Phase Cylinderal Capacitor
  • Expandable Intelligent PF Control for small medium load networks
  • Ultimate solution for compensation of unbalanced loads
  • Measure the reactive power of the system through 3CT’s from all 3 phase

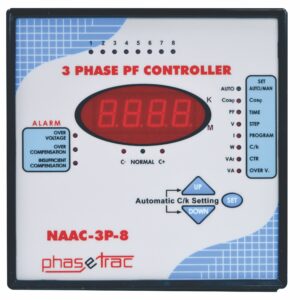

  • Highly intelligent Micro processor baseed 3 phase P.F. Controller with optional
  • Dual P.F. Setting
  • LCD Controller with inbuilt Load Manager with front optical port
  • Optional Plugable Data logger, Ethernet, USB, RS485, GSM modern and capacitor protection modules
  • Powder Coated-Structure finish with altractive Deep Orange and Dark Blue finish
  • Incomer TPMCCB
  • HRC/HCB’s are used for backup protection

SPECIFICATIONS

# Specfications
Design Standardized Modular Sheet Steel Enclosures
Enclosure Finish Epoxy powder coated, in grey (RAL 7305) structure finish
Internal parts: rust proof zinc passivated/power coated
Rated Volatge 415V-440V/50Hz
(Design available for 380V, 480V, 690V, 750V – 50/60Hz)
Output Rating Refer to the table
Other output ratings, switching combination or design voltages are available upon request
Capacitors DUCA POWDER Super Heavy Duty Series used are rated at

525V, 690V and 880V, 50/60Hz as per network voltage

Reactors H-Class
5.6%, 7%,14% or other Tuning/Detuning rating on request
Incoming / Outgoing MCCB / ACB as Incomer and HRC Fuses for backup protection

(other combination on request)

Ambient Temperature 50oC max short time
40oC average in 24 hours
35oC annual average
-10oC low limit
Protection class IP 40
Unbalanced Activcomp System For Unbalanced Activcomp System ratings & specifications – Contact our Sales Office
