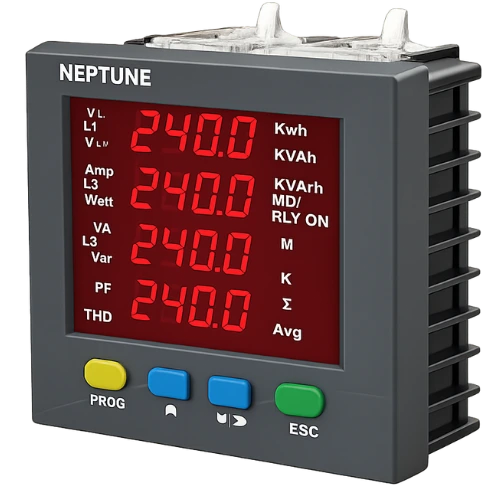

M9 Plus Power Analyzer
Power Analyzer with MDI Relay & LED display
The M9 plus Power Analyzer with MDI Relay & LED display is a high-performance energy monitoring device designed for industrial and commercial applications. It delivers accurate True RMS measurements of electrical parameters, including voltage, current, power and harmonics.
Salient features
- Bright LED display, 4 rows
- Site programmable CT and PT ratio
- True RMS measurement & Password protection Maximum demand monitoring
- RS 485 computer interface
- 60A direct current CT module available
- Harmonic measurement (total/ind., RS485)
- Accuracy as per IEC62053-21
- Universal auxiliary supply
- Real Time Clock(RTC)
- Parameters: Phase wise-VL-L, VL-N, Amp, Hz, PF, KW, KVA, KVAR, KVAH, KVARH, KWh
energy, THDV, THDI & run hours, MD & upto 31st Harmonic through RS 485
Description
| # | Specification |
|---|---|
| Display | 7 segment LED display, 0.39″ |
| Digits | 4 rows of 4 digits |
| Input Volts | 0-500 VAC (L-L), 3Ø-4 Wire / 1Ø-2 Wire |
| Input Ampere | 0.015A-6.00 Ampere AC/Direct 60 Ampere Optiona |
| Resolution | Energy 0.1 kWh, PF 0.001, Hz 0.01 & Auto ranging for Voltage, Current & Power |
| CT Primary | Programmable for upto 10000A |
| CT Secondary | A/5A Programmable |
| PT Radio | Programmable upto 132 KV |
| Communication | RS485 Modus (Optional) |
| Auxiliary Supply | 90-270 VAC / DC |
| Burden | 3VA Max. For Auxilliary supply, 0.2 VA for voltage & current input |
| Update time | 1 Sec |
| Scroll | Auto / Manual |
| Replay Output | 1 C/O relay for Maximum Demand |
| Temp. / Humidity | Operating: -10°C to 55°C, Storage: -20°C to 75°C <95% RH |
| Temp Humidity | Operating: -10°C to 55°C, Storage: -20°C to 75°C <95% RH |
