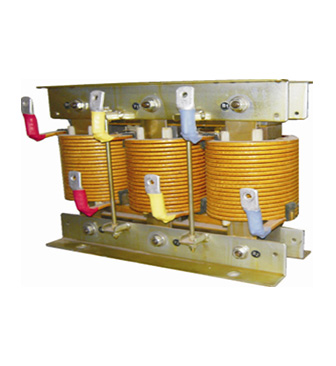

Harmonic Block Reactors

Features

  • Neptune Reactors are designed with low loss features in comparison to other brands available in market
  • Single layer strip wound type construction for better cooling and heat dissipation resulting in lower losses
  • Capable of withstanding very high harmonic overload Ambient Temp. (Max. Temp. sustained) up to 60°C
  • Step core type design for lower losses
  • Vacuum Impregnated
  • Linearity (withstand capability on resonance freq. and high harmonic current variation) – 200% (L>0.95 x Ln)
  • Strip wound conductor (Al. / Cu.) has been converted into terminals (instead of Lugs) to avoid temperature rise across the joints
  • H-Class Insulation, 180°C
  • High Temp. disconnection above 155°C

Available in Copper & Aluminum

Description

Design Features

Neptune filter circuit are designed as three-phase reactors with an iron core and air gap. Harmonic Filter Reactors are made out of highest quality material and very stringent quality control. It has been designed with properties like low temperature rise and lower flux density so that it can operate in worst conditions of ambient and harmonic overloads. They offer very good degree of linearity. Cheaper and non-linear reactors may trigger undesirable chain phenomena during periods of operation with high harmonic values, such as reducing in the inductance with consequent increase in the resonance frequency of the LC group, which would drain off more harmonic current, further reducing its inductance and overload the reactor more and more. Reactors are available with filtering factor of 7% and 14% in 12.5, 25, 50 and 100 KVAR rating. Any other filtering factor and rating can be made on request.

Technical Specifications

# Parameters
Standard Voltage (Un) 415/440/480V/550/690
Rated Voltage : 3 x 415V Rated (KVAr) 5,10,12.5, 25, 50 &100
Frequency 50 Hz
Constructional Max. Voltage 1000 V
Test Voltage 3000 V
Filtering factors / Tuning Freq. 7%, 189 Hz 14%, 133 Hz other on request
Tolerance of inductance ±3%
Linearity (L> 0.95 x Ln) 200%
Ambient temperature + 60°C
Insulation class H,180°C
Cooling method Natural cooling (AN)
Installation Indoor
Protection degree IP 00
Operating altitude 1000m above sea level
Temp. sensor (normally closed) 155°C
Reference standard IEC 61558-2-20 IS:5553
