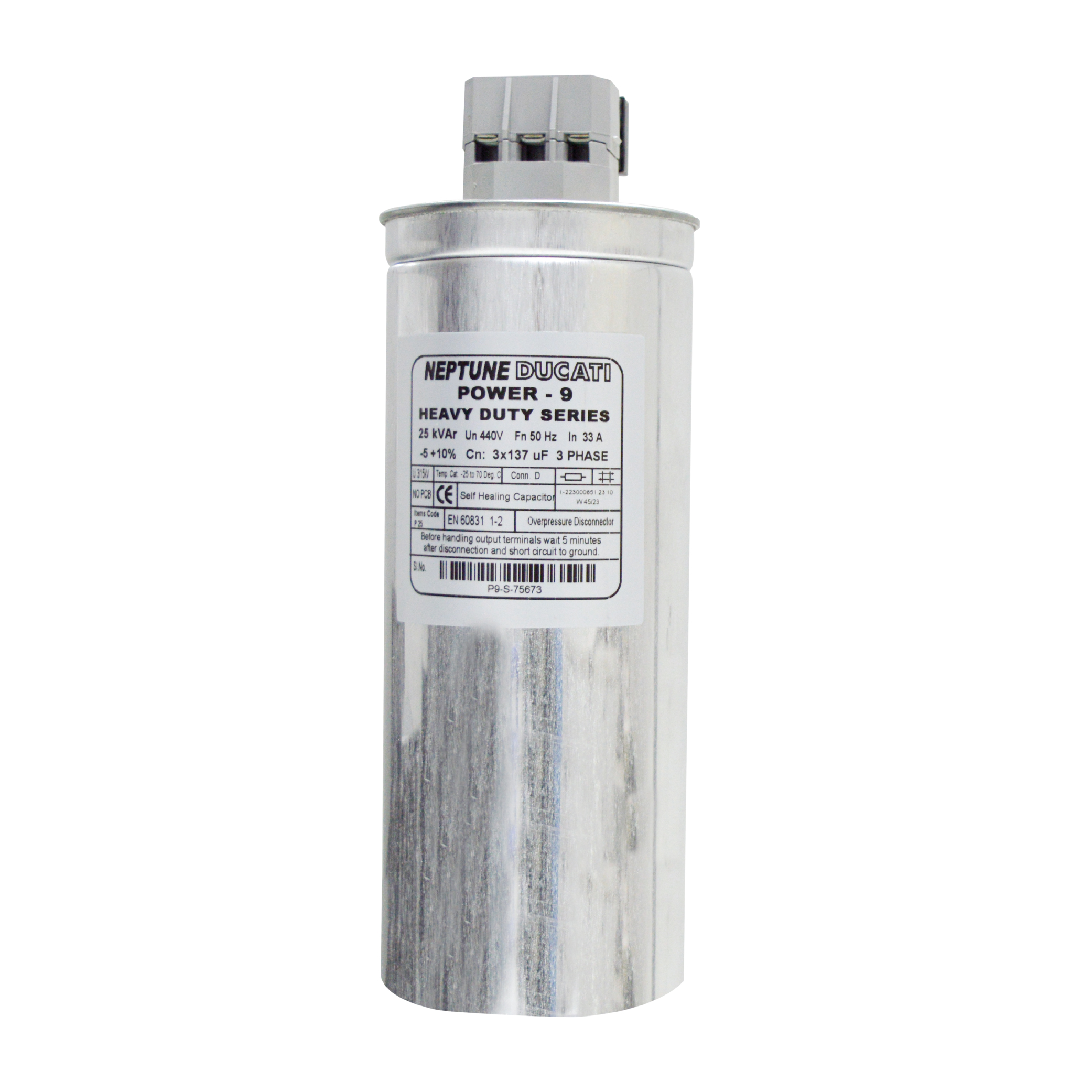

Power 9 Heavy Duty Capacitor
Features
- New compact Heavy Duty Series
- Cylindrical 3 phase capacitors
- Life expectancy >1,00,000 hours
- Low losses≤ 0.2 W/ KVAR
- Rating available in 1, 2, 3, 4, 5, 10, 12.5, 15 & 25 KVAR
Description
The capacitors making up the POWER-9 series are used for static power factor correction of a wide range of motors and transformers. This series share the same internal configuration, with three capacitor elements wired internally in a delta connection. The overpressure protection system is specifically dimensioned so as to constantly ensure maximum safety in terms of ground protection and protection against the risk of arcing, even in conditions where there is a high energy density.
In these series HEAVY DUTY of resin-impregnated capacitors, the three elements are housed in a plastic container which, together with the impregnating agents, assures dual insulation between the wound cores and metal enclosure. To guarantee perfect filling during the resin impregnation process, the process itself is carried out prior to the elements being placed in the enclosure; in this way the distribution and uniformity of the impregnation can be subjected to a complete visual and dimensional inspection.
Technical Specifications
| Technical Data | Description |
| Standard | IEC 60831–1/2 (2014) |
| Rated Voltage | 415-690V |
| Rated Frequency | 50/60 Hz |
| Over volage withstand | Un 15% ,30 mins in every 24 Hrs,Un 30 % 1min. In every 24 Hrs |
| Over Current | 3 * In |
| Capacitance Tolerance | -5 to 10 % |
| Test voltage terminals | 2.15*Un AC 2s |
| Test voltage terminalcase | 3 KV AC 2s |
| Inrush Current | 200 *In |
| Losses | <0.2 W/Kvar, |
| Casing | Cylindrical Aluminum CAN |
| Enclosure Protection | IP00 |
| Life Expectancy | 100000 temp level level C |
| Ambient Temperature | -25/70 |
| Cooling | Natural cooling casing temperature Max 60 C Permitted on top of the Case |
| Dielectric System | MPP Type, Self -healing Properly |
| Impregnation | Inert Gas Or NPCB, Biodegradable natural Oil |
| Safety Features | Over Pressure Sensitive 3 Ph Disconnector |
| Altitute | Max 2000 mtrs |
| Relative Humidity | Max 95% |
| Mounting Position | Random |
| Mounting and Earthing | Threaded Stud at bottom of the Case with Nut & Spring Washer |
| Discharge resistors | 1 Min,50 V/3 Min,75 V |
Technical Drawing
