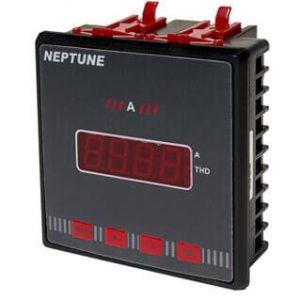

M9 Power Analyzer

M9 with MDI Relay (LED)

Description

# Specification
Display 7 segment LED display, 0.39″
Digits 4 rows of 4 digits
Input Volts 0-500 VAC (L-L), 3Ø-4 Wire / 1Ø-2 Wire
Input Ampere 0.015A-6.00 Ampere AC/Direct 60 Ampere Optiona
Resolution Energy 0.1 kWh, PF 0.001, Hz 0.01 & Auto ranging for Voltage, Current & Power
CT Primary Programmable for upto 10000A
CT Secondary A/5A Programmable
PT Radio Programmable upto 132 KV
Communication RS485 Modus (Optional)
Auxiliary Supply 90-270 VAC / DC
Burden 3VA Max. For Auxilliary supply, 0.2 VA for voltage & current input
Update time 1 Sec
Scroll Auto / Manual
Replay Output 1 C/O relay for Maximum Demand
 Temp. / Humidity  Operating: -10°C to 55°C, Storage: -20°C to 75°C <95% RH
 Temp Humidity  Operating: -10°C to 55°C, Storage: -20°C to 75°C <95% RH

Parameters

# Parameters
V (Individual / Average),
Current (Individual / Current (Individual / Average) Phase angle , Frequency,
Power factor (Individual / Average),
Phase angle,
Active / Reactive / Apparent power (Individual / total),
Maximum demand (kW/kVA),
Peak maximum demand (kW/kVA),
Active energActive energy,
Reactive inductive energy Reactive capacity energy,
Apparent energy (Import & Export) Run hour (Import / Export & Total),
THD V(phase vise),
TDH I (Phase vise).
