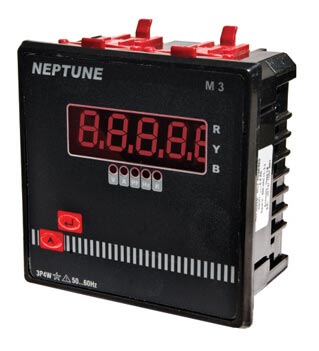

M3 Voltage Meter

M3 There Phase Voltage Meter


# Specification
Display 7 segment LED DISPLAY 0.56″
Auxiliary Supply 90 – 270VAC/DC
Burden On Supply  <3 VA
Digit 4 digits 1 row
Input Volts 0-500VAC (L-L), 0-300VAC (L-N)
Resolution Auto ranging, Hz 0.01
PT Ratio Up to 132 kV
Scroll Auto / Manual
Update Time 1sec
Temp./ Humidity Operating: -10°C to 55°C, Storage: -20°C to 75°C < 95%
Scroll Auto / Manual
RH Parameters V L-L, VL-N Phase wise & Avg. Hz, THDV Phase wise & Avg.
