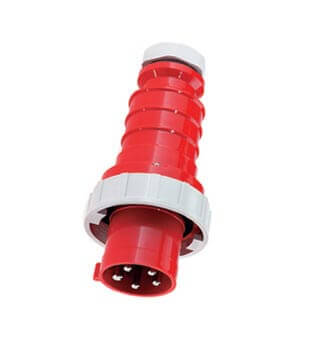

Plug IP67 5 Pin 32Amp

Plug water tight IP-67: 32 Amp 5 Pin

SKU: 21241 Categories: ,

Description

# Detail
NEPTUNE BALS No 21241
EAN/pcs 4024941212410
Amperage 32A
Poles 5p (3p+N+PE)
Earth ‘Clock’ Position 6 h
Voltage 200/346 up to 240/415V
Frequency 50 and 60Hz
Protection IP67
Full Description
Membership Quick-Connect TE
Connection design screwless spring-clamp technology with box terminals
Max. conductor 6.0 mm²

Material

Housing material Polyamide
Contact / Contact Carrier contact carrier made of high temperature resistant material, contacts are brass nickel plated
Weight/pcs 0.350 kg
Packaging unit 10 pc/pcs
