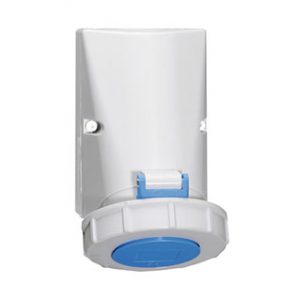

Socket Outlet (IP-44): 16/20 Amp 4 Pin

Surface Mounting Socket Outlet IP44

Description

NEPTUNE BALS No 11645
EAN/pcs 4024941116459
Amperage 16A
Poles 4p (3P+PE)
Earth ‘Clock’ Position 6 h
Voltage 380 up to 415V
Frequency 50 and 60Hz
Protection IP44
Membership screw terminal
Connection design screw terminal
Cable entry top entry M25
Max. conductor 4.0 mm²
Packaging 90×87 mm (HxW)

Material

Housing Material
Polyamide
Contact / Contact Carrier
contact carrier made of polyamide, the contacts are brass
Weight/pcs
0.195 kg
Packaging unit
10 pcs

Technical Drawings
