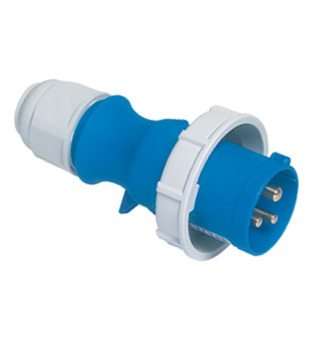

Plug IP67 3 Pin 16Amp
Plug water tight IP-67: 16/20 Amp 3 Pin
Description
| # | Detail |
|---|---|
| NEPTUNE BALS No | 210576 |
| EAN/pcs | 4024941109765 |
| Amperage | 16A |
| Poles | 3p (2P+PE) |
| Earth ‘Clock’ Position | 6 h |
| Voltage | 200 up to 250V |
| Frequency | 50 and 60Hz |
| Protection | IP67 |
| Full Description | |
| Membership | screw terminal |
| Connection design | screw terminal |
| Max. conductor | 2.5 mm² |
Material
| Housing material | Polyamide |
| Contact / Contact Carrier | contact carrier made of polyamide, the contacts are brass |
| Weight/pcs | 0.151 kg |
| Packaging unit | 10 pc/pcs |
TECHNICAL DRAWINGS
