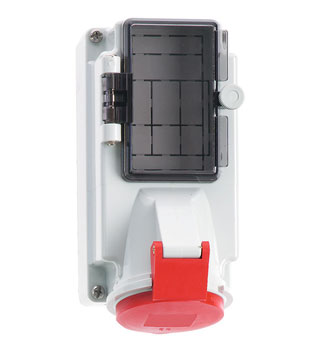

Surface Mounting Socket Outlet with MCB Fused IP44, 5 Pin, 16Amp

Surface Mounting Socket Outlet with MCB provision IP-44: 16/20 Amp 5 Pin

Description

# Detail
NEPTUNE BALS No 15059
EAN/pcs 4024941150590
Amperage 16A
Poles 5p (3p+N+PE)
Earth ‘Clock’ Position 6 h
Voltage 200/346 up to 240/415V
Frequency 50 and 60Hz
Protection IP44
Full Description
Membership Quick-Connect
Connection design screwless spring terminals as cage clamp with Kontext-contact
Cable entry top entry M20 bottom entry M25/20
Max. conductor 4.0 mm²
Packaging 170×90 mm (HxW)

Material

Housing material Polycarbonate
Contact / Contact Carrier contact carrier made of high temperature resistant material, contacts are brass nickel plated
Weight/pcs 0.545 kg
Packaging unit 1 pc/pcs
