Multi Source Energy Meter

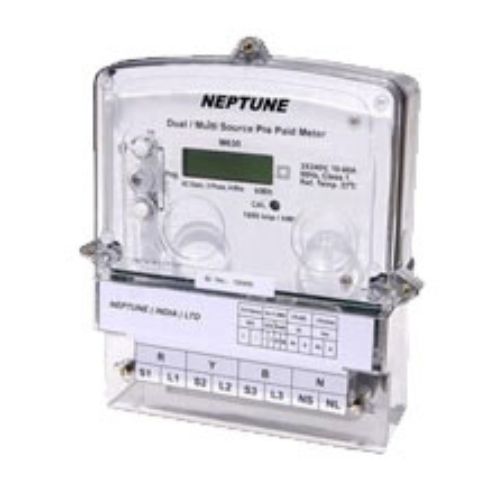

Dual Source Energy Meter (Single Phase and Three Phase)

Description

Important Features:

  • 32 bit micro controller
  • inbuilt latching relay with German technology
  • online data monitoring through RS 485 link
  • optional time of use tariff
  • deduction of daily utility charges
  • no additional cost of token generation
  • direct entry of credit in rupees to meter without cumbersome keypad entries.
  • no unwanted trip offs during working days
  • double password protected online tariff management systems ensuring no additional cost.
  • billing history
  • customer behavior pattern
  • point of sell history
  • on site programmable over load setting of DG back up.
  • anti tamper feature if current reversal.

Functional

# Functional
Metered Active KWH
Additional Parameters Voltage
Current
Power factor
Apparent power
Frequency
Display Features Credit remaining , Total kwh
Current month kwh
Total money vended
Separate vended money for kwh & utility
Charges. Previous month cost & kwh
Number of days before disconnection.
Relay cut off timer at over load.
Number of attempts at over load.
Over load setting in kVa.
amper / fraud detection Over load
Facilities
Meter supports the following Unit cost change. Tariff change Max. Kva load limit change New customer

Technical

# Technical
Voltage 240v ph- N
Current
IBasic 10 A
Imax. 60 A
Frequency
Burden
Current circuit 2.0 va per phase
Voltage circuit. 1.5 W/8 VA per phase
Metrology IS&IEC61036 Class 1.0
Time Clock & Calendar
Normal Power Source mains supply
RTC Backup Source Lithium Battery
Data Retention
Unpowered 10 years (minimum)
Display
Format Customized LCD
Activity Indicator
Format Red LED
Environmental
Operating temperature -10’C – +50’C
Storage temperature -25’C – +70’C
Mechanical
Dimensions (W x H x D) 175 x 76 x 225 mm (Approx).
Meter Load connector Rated at Imax minimum of 10000 Operations at rated current for resistive load
