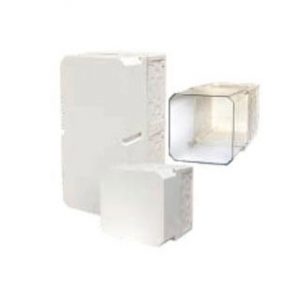

Junction Boxes

Our Modular Distribution System Provides optimum security to both operations and equipment because they feature total insulation and protection degree IP 65 according to IEC 60529 and EN 60529.

Description

  • Impact resistant modular polycarbonate enclosures
  • Chemical resistant
  • Solid and Stable
  • Self-extinguishing
  • Weather Resistant
  • Corrosion free screws
  • Self internal fixing centre / fixing centre outside
  • Cable entry to client’s specifications

Available Sizes

Part No. Dimensions
L x W x H (mm)
1001 90 x 90 x 50
1002 100 x 100 x 60
1003 110 x 140 x 70
1004 130 x 130 x 100
1005 130 x 170 x 80
1006 170 x 210 x 100
