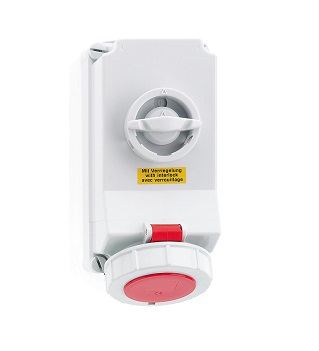

Surface Mounting Switched Socket, Interlocked IP67, 5 Pin, 63Amp

Surface Mounting Switched Socket Interlocked Water Tight IP-67: 63 Amp 5 Pin

Description

# Detail
NEPTUNE BALS No 16602
EAN/pcs 4024941166027
Amperage 63A
Poles 5p (3p+N+PE)
Earth ‘Clock’ Position 6 h
Voltage 200/346 up to 240/415V
Frequency 50 and 60Hz
Protection IP67
Full Description
Membership Quick-Connect
Connection design screw terminal as box terminal with Kontex-contact
Cable entry top entry M40 bottom entry M40/M32
Max. conductor 25.0 mm²
Packaging 260×160 mm (HxW)

Material

Housing material Polycarbonate
Contact / Contact Carrier contact carrier made of high temperature resistant material, contacts are brass nickel plated
Weight/pcs 2.300 kg
Packaging unit 1 pc/pcs

TECHNICAL DRAWINGS

TOP
