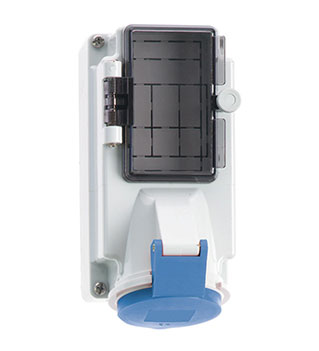

Surface Mounting Socket Outlet with MCB Fused IP44, 3 Pin, 16Amp

Surface Mounting Socket Outlet with MCB provision IP-44: 16/20 Amp 3 Pin

Description

# Detail
NEPTUNE BALS No 15019
EAN/pcs 4024941150194
Amperage 16A
Poles 3p (2P+PE)
Earth ‘Clock’ Position 6 h
Voltage 200 up to 250V
Frequency 50 and 60Hz
Protection IP44
Full Description
Membership Quick-Connect
Connection design screwless spring terminals as cage clamp with Kontext-contact
Cable entry top entry M20 bottom entry M25/20
Max. conductor 4.0 mm²
Packaging 170×90 mm (HxW)

Material

Housing material Polyamide
Contact / Contact Carrier contact carrier made of high temperature resistant material, contacts are brass nickel plated
Weight/pcs 0.505 kg
Packaging unit 1 pc/pcs

TECHNICAL DRAWINGS

TOP
