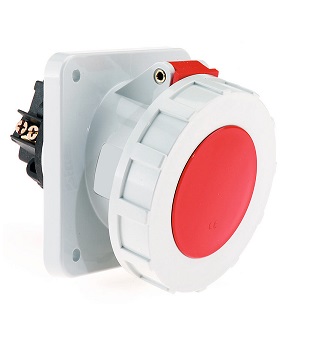

Panel Mounting Socket Outlet angled Water Tight IP-67 4 Pin 63Amp

Panel Mounting Socket Outlet angled Water Tight IP-67: 63 Amp 4 Pin

SKU: 1200 Categories: ,

Description

# Detail
NEPTUNE BALS No 1200
EAN/pcs 4024941012003
Amperage 63A
Poles 4p (3P+PE)
Earth ‘Clock’ Position 6 h
Voltage 380 up to 415V
Frequency 50 and 60Hz
Protection IP67
Full Description
Membership screw terminal
Connection design screw terminal as box terminal with Kontex-contact
Max. conductor 25.0 mm²
Fixing centres flange 114×114 mm, fixing centres 90×90 mm

Material

Housing material Polyamide
Contact / Contact Carrier contact carrier made of Polyamide, contacts are brass nickel plated
Weight/pcs 0.510
Packaging unit 5 pc/pcs

TECHNICAL DRAWINGS
