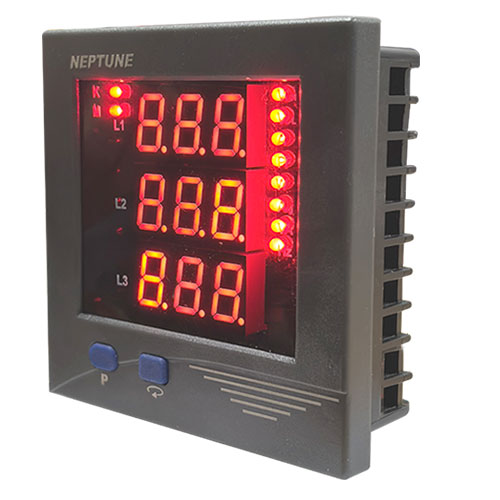

Advance VIF Meter

ADVANCED VIF METER

Description

# Specification
Display 7 segment LED DISPLAY
Auxiliary Supply 90 – 270VAC/DC
Burden On Supply  <3 VA
Digit 3 rows of 3 digits
Input Volts 0-500VAC (L-L), 3Ø-4 Wire / 1Ø-2 Wire
Input Ampere Hz 0.1 & Auto ranging for Voltage, Current & Power
CT Primary Programmable for up to 5000A
CT Secondary 1A / 5A Programmable
PT Ratio Up to 132 Kv
Scroll Auto / Manual
Update Time 1sec
Temp./ Humidity Operating: -10°C to 55°C, Storage: -20°C to 75°C < 95% RH

Parameters

# Parameters
Ampere phase wise,
VL-L phase wise,
VL-N phase wise,
Hz, PF Phase wise,
Active power phase wise,
Apparent power phase wise,
Run Hour,
RPM
